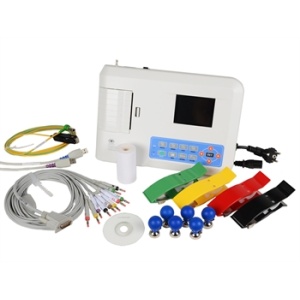

ECG – 3 Channel ECG with Monitor 300G

– 3.5″ TFT colour LCD screen
– 12 leads simultaneous display
– Thermal printing system
– AC and DC power supply
– High capacity built-in lithium rechargeable battery
– Battery power supports up to 150 ECG continuous records
– Built-in Database
– Built-in memory can store more than 1000 cases
– Digital signal processor for filter
– Auto-measurement, auto-analysis, auto-interpretations
– ECG-Sync software, USB connection to PC
– Internal software: GB, FR, IT, ES, DE, TR, PL, PT, SI, BG, YU, RU, KZ, CN.
– PC software ECG Synchronous: GB, IT, FR, DE, PL, SK, TR.
– Manual: GB, IT, ES, FR.

USB connection allows real-time transmission to PC, remote data analysis and diagnosis, management and printing through the PC.

628.02 ex VAT

628.02 (ex VAT)
772.46 (inc VAT)

SKU: 33221 Categories: ,

Shipping 1-2 Business Days

Trading for over 25 Years

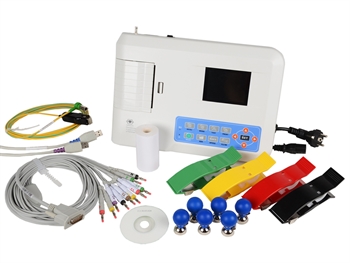

300G ECG – 3 Channel With Monitor
Technical Specifications
ECG instrument Input
• Safety Type: Class I, type CF applied part, which has defibrillation-proof applied part
• Lead Standard 12 leads
• Input way: Floating and defibrillation protection
• Patient leak current: <10µA • Sampling rate: 1000Hz • A/D conversion: 12bit • Frequency response 0.05Hz~150Hz (-3dB, + 0.4dB) • Time constant: >3.2s
• CMRR: >60dB, >100dB(Add filter)
• Enduring polarization voltage: ±500mV
• Noise level: <15µVp-p Dispose Wave Data • EMG interference filter: 25Hz/35Hz (-3dB) • AC filter 50Hz/60Hz (-20dB) Waveform output • Recording way: Thermal printing system (32spots/mm) • Recording paper: 80mm(W)×20m(L) • Sensitivity: 2.5, 5, 10, 20, 40 mm/mV • Paper speed: - Auto-record: 25 mm/s, 50 mm/s - Rhythm record: 25 mm/s, 50 mm/s - Manual-record: 5, 6.25, 10, 12.5, 25, 50 mm/s Power supply • AC: 110-220V, 50/60 Hz • DC lithium battery: 7.4V, 3500 mAh Fuse • 2 pcs Ø5×20mm AC time lag; T250mA/250V(Power Supply:220V) Form • Size: 315 x 215 x 77 mm • Net Weight: 1.6 kg Standard accessories • ECG cable - 1 set • Limb electrode clamp - 1 set • chest electrodes - 1 set • Ground wire • Power connection • Paper roll • USB connection and PC software
