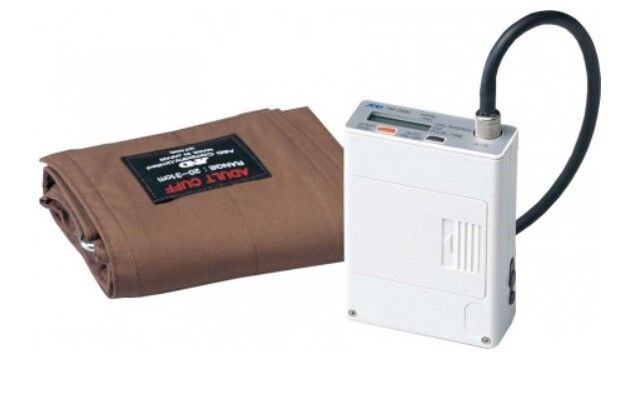

A&D Medical TM-2430 Ambulatory Blood Pressure Monitor
The TM-2430 is a compact and lightweight 24 hour ambulatory blood pressure monitor, incorporating A&D’s latest technology gained from over 20 years experience in the manufacturing of ambulatory BPMs. Validated in accordance with BHS protocol and its accuracy was proven to be A/A.
€1,635.00 excl.VAT
€1,635.00 (Excl. VAT)
€2,011.05 (Incl. VAT)
The TM-2430 base unit is recommended for health care professionals.
- Lightweight at only 215 grams and only slightly larger than a cigarette packet, makes for comfortable and easy patient wear throughout their daily routine
- Clinically validated to BHS protocol at A/A (top ranking)
- Oscillometric measuring method
- New pulse correction algorithm for faster measurement and noise rejection
- Automatic or manual measurement
- Automatically adjusts:
- Proper Cuff Pressure
- Exhaust
- End of Measurement
- Rechargeable batteries and charger included.
- Date/Time display: 1997-2096 & auto leap year
- Multiple measurement intervals
- Data output to computer or printer for keeping records and analysis
- RS-232C connector (NOT a USB cable), supplied)
- Comes with blood pressure analysis software
- Three separate cuffs to cater for all arm sizes
BP Measurement | |
Measurement Method | Oscillometric |
Measuring Range | |
Blood Pressure | 40 ~ 280 mmHg (SYS – 60 ~ 280mmHg/DIA – 40 ~ 160mmHg) |
Pulse | 30 ~ 200 bpm |
Accuracy | |
Blood Pressure | +/- 3 mmHg |
Pulse | +/-5% |
Pressurization | |
Method | Micro pump |
Maximum Pressure | 300 mmHg |
Preset Pressure | Automatic |
Depressurization | |
Method | Electric Controlled Exhaust Valve (ECEV) |
Safety System | A magnetic, solenoid valve opens when the pressure exceeds approximately 320 mmHg. Over 330 mmHg, an independent safety circuit exhausts air. |
Interval Setting | 5, 10, 15, 20, 30, 60, 120 min. |
Clock | 24 hour clock, calendar (~ year 2096) |
Memory Data | Up to 300 sets of data |
Power Supply | |
Battery | 3x LR6 (“AA”) type batteries – alkaline or Ni-cd type |
Battery Life | Approx. 200 measurements |
Temperature & Humidity | |
Operating Temperatures | 10°C ~ 40°C (50°F ~ 104°F), Less than 85%RH (non-condensing) |
Storage & Transportation | -20°C ~ 55°C (14°F ~ 131°F), Less than 95%RH (non-condensing) |
External Dimensions | 72(W) x 27(H) x 100(D) mm/2.8(W) x 1.0(H) x 3.9(D) inches |
Weight | Approx. 215g (0.47lb) without cuff |
Related Documents:
TM-2430 Validation
TM-2430 Brochure
TM-2430 Instructions For Use
