Seca 525 – Medical Body Composition Analyser
This Medical Body Composition Analyser (seca mBCA 525) is the mobile solution for Bioelectrical Impedance Analysis (BIA).
** Seca mBCA 525 must be purchased with a once off seca 115 software license
€4,428.63 excl.VAT
- Specially designed and validated for mobile medical use
- Unique accuracy through whole body MRI validation (skeletal muscle mass) and 4C model (fat mass)

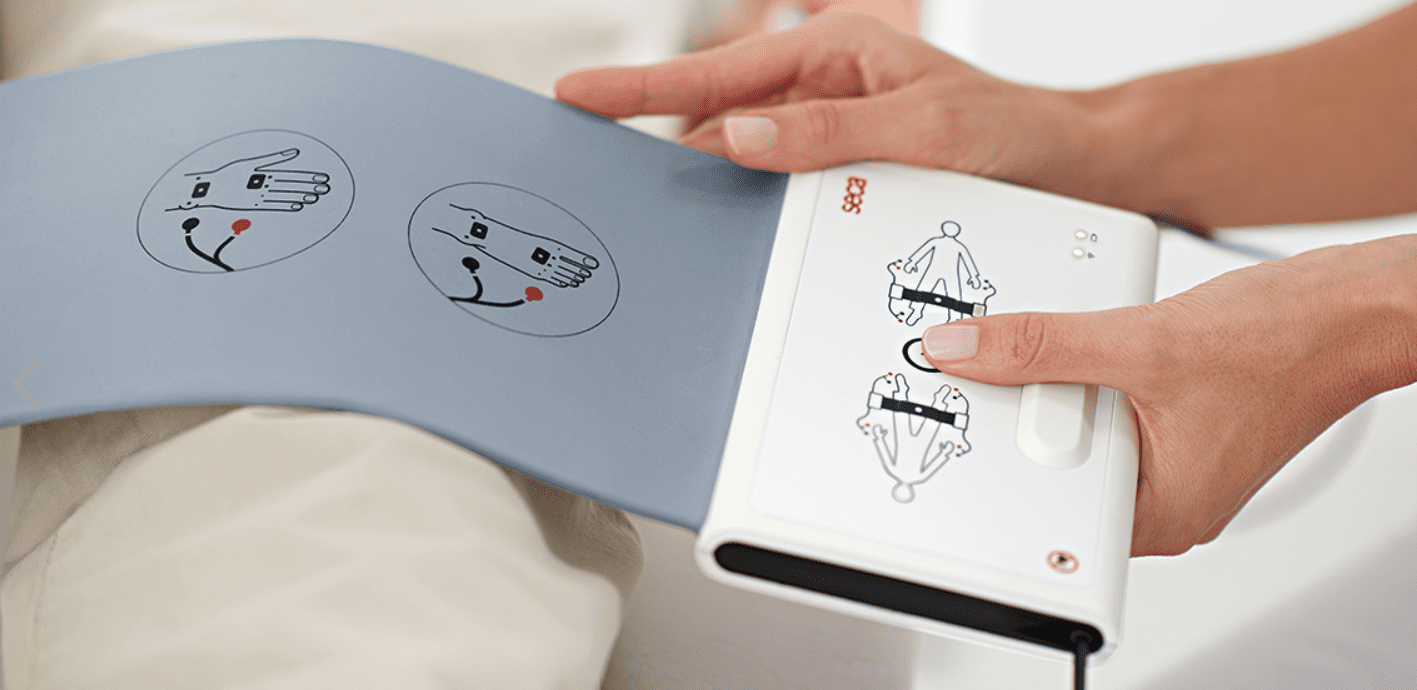

- Patented measuring mat: BIA in supine position is finally comfortable, precise and easy
- Lightweight and robust touchscreen monitor allows for direct evaluation
- Validation studies are bundled and published in the European Journal of Clinical Nutrition 2013/2017, among others
- Comprehensive, personalized normal ranges based on over 3,000 multiethnic subjects
- Possible to evaluate the measurement directly on the monitor
- EMR-validated: transmit measured data directly to any Electronic Medical Record (EMR) system

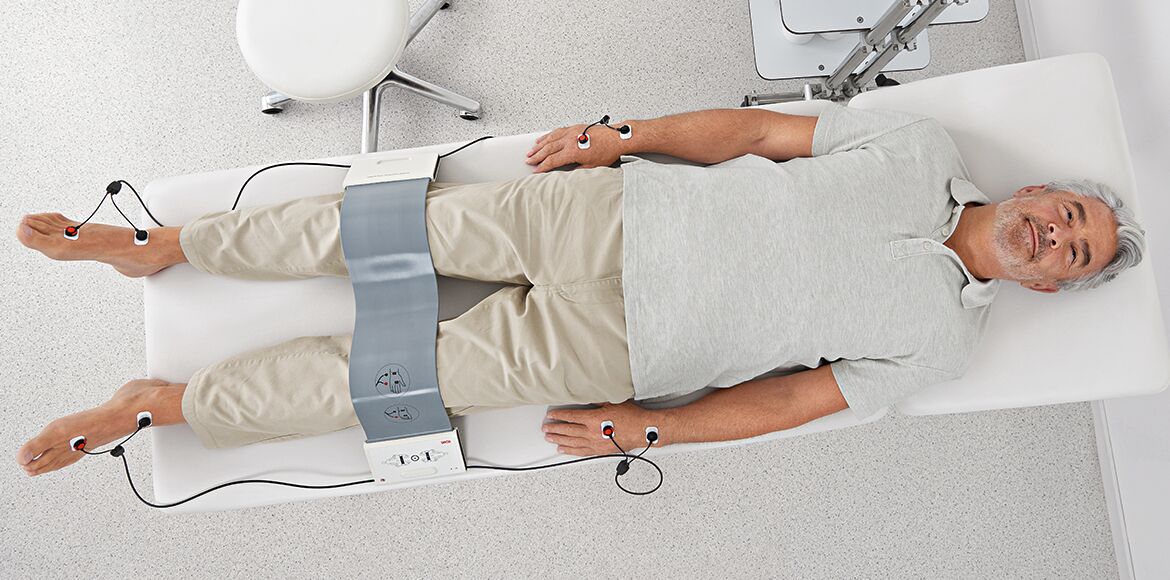

New development in supine measuring: mobile mBCA for medical body composition analysis.

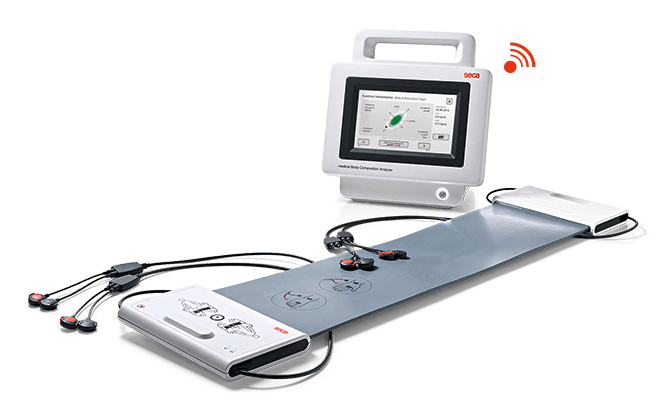

The seca mBCA 525 is the mobile solution for Bioelectrical Impedance Analysis (BIA). Its low weight, good handling and precise measurement technology make it very efficient and versatile. Its technology is one-of-a-kind in the world because fat mass, muscle mass, and body water are determined with a newly developed measuring mat. It is automatically networked by Wi-Fi to the touchscreen monitor, which can store up to 100,000 measurements. This enables many patients to be measured and courses of therapy to be reliably documented for years.
Key-Technical Data
- BIA measuring period 30 seconds
- BIA measuring frequency 1; 2; 5; 10; 20; 50; 100; 200; 500 kHz
- BIA measuring method 8-point Bioelectrical Impedance Analysis
- BIA measurement segments Right arm, left arm, right leg, left leg, right half of body, left half of body, torso
Functions and Properties
|
![]() |
---|
Documents
Technical Data
- Compatible printers laser printer and inkjet printer via PC software seca analytics 115
- Display7″ touchscreen display
- BIA measuring period 30 seconds
- BIA measuring frequency 1; 2; 5; 10; 20; 50; 100; 200; 500 kHz
- BIA measuring method 8-point Bioelectrical Impedance Analysis
- BIA measurement segments Right arm, left arm, right leg, left leg, right half of body, left half of body, torso
- BIA measuring electricity 100 µA
- Net weight 0.5 sts 3.0 kg
- Measuring mat width 170 mm
- Measuring mat height 20 mm
- Measuring mat depth 783 mm
- Product width 252 mm
- Product height 262 mm
- Product depth 230 mm
- Ports Ethernet USB 2.0 Wi-Fi seca 360° wireless
- Power supply Rechargeable batteries Mains adapter
