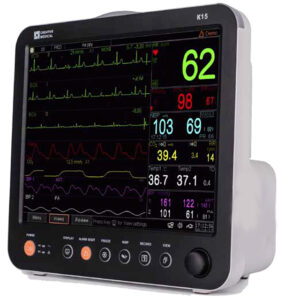

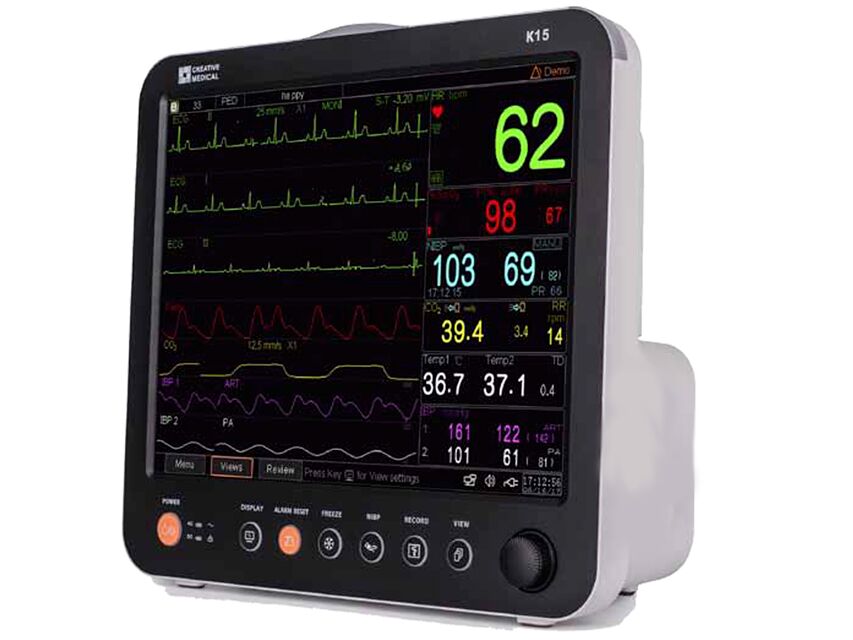

Vital Sign Monitor K15 Touchscreen 2 IBP EtC02 Config with SpO2

Multi-functional patient monitors for monitoring the vital physiological signs of adult, pediatric and neonate patients.

Real-time recording and displaying of parameters, such as ECG,heart rate (HR), non-invasive blood pressure (NIBP), oxygen saturation (SpO2), respiration (RESP) and temperature (TEMP)allow comprehensive analysis of the patient’s physiological conditions.

3,040.95 ex VAT

3,040.95 (ex VAT)
3,740.37 (inc VAT)

In stock

ISO
Product Catalogue
Declaration of Conformity
Other Documents
SKU: 35310 Categories: ,

Shipping 1-2 Business Days

Trading for over 25 Years

Real-time recording and displaying of parameters, such as ECG, heart rate (HR), non-invasive blood pressure (NIBP), oxygen saturation (SpO2), respiration (RESP) and temperature (TEMP) allow comprehensive analysis of patient’s physiological conditions.

– ergonomic design with intuitive user interface
– USB socket for data transfer and software upgrade
– 9 traces on-screen waveforms
– Windows style display view, easy to operate
– visual and audible alarm for physiological and technical alarms
– large capacity storage
– suitable for use with original Nellcor sensors
– protection against defibrillator discharge, resistance against the interference from electro-surgical unit; Cardiac pacemaker pulse detection and inhibition.

Internal software: GB, DE, FR, PT, ES, IT, PL, TR, RU.

PC software GB, IT, ES.
Compatible with Windows XP, 7, 8,10, 11.

Technical Specifications
ECG
Input dynamic range: ±(0.5~5 mVp)
Differential input impedance: =10 MO
Bandwidth: 0.05~150 Hz (Diagnostic), 0.5~40 Hz (Monitoring), 1~20 Hz (Operation)
CMRR: =90 dB (Diagnostic) / =105 dB (Monitoring & Operation)
Sensitivity selection: ×1/4, ×1/2, ×1, ×2, ×4 and Auto
Sweeping speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
HR measuring range: 15~350 bpm ±1% or ±2 bpm, whichever is greater
Pacemaker pulse detection and rejection functionRESP
Measuring range: 0~120 rpm ±5% or ±2 rpm, whichever is greater

TEMP
Measuring range: 21.0~50.0 °C ±0.2 °C from 25~45 °C

NIBP
Technique: Oscillometric method
Typical measurement time: <30 seconds (adult cuff)
NIBP measuring range: SYS: 40~275 mmHg (Adult) / 40~200 mmHg (Pediatric) / 40~135 mmHg (Neonate)
NIBP measuring range: DIA: 10~210 mmHg (Adult) / 10~150 mmHg (Pediatric) / 10~95 mmHg (Neonate)
NIBP measuring range: MAP: 20~230 mmHg (Adult) / 20~165 mmHg (Pediatric) / 20~110 mmHg (Neonate)
NIBP measurement mode: Manual, Auto, STAT, Multi-cycle mode
NIBP measuring accuracy: Mean difference: ±5 mmHg
Standard deviation: 8 mmHg
Auto measuring intervals: 1-480 min

SpO2
Technique: Dual-wavelength optical method
Measuring range: 0%~100% ±2% for SpO2 range 70~100%
PR measuring range: 30~250bpm ±2bpm or ±2%, whichever is greaterLow perfusion performance: As low as 0.3%.

EtCO2 (needs 33796 or 33797)
Technique: Infrared optical method
Sampling mode: Sidestream or Mainstream
Measuring range: 0~150 mmHg
Measuring accuracy: 0~40 mmHg ±2 mmHg; 41~70 mmHg ±5%; 71~100 mmHg ±8%; 101~150 mmHg ±10%
Flow rate: 50 ml/min ±10 ml/min (Sidestream)

IBP
Technique: Strain gauge transducer
Input sensitivity: 5 µV/V/mmHg
Measuring range: -50~300 mmHg ±2% or ±4 mmHg, whichever is greater
Measuring positions: ART, RAP, PA, LAP, CVP, ICP, AUXP1, AUXP2
Calibration: zero calibrating

Other Specifications
Power supply: AC 100-240 V, 50/60 Hz, 60 VA
Built-in lithium battery: 11.1V/4400 mAh
Display: 12 or 15 inch TFT display
Alarming method: 3 levels audible-visible alarm
Networking: Ethernet
Safety standard: IEC 60601-1



Standard accessories
– Adult SpO2 probe
– NIBP adult cuff
– SpO2 extension cable
– ECG cable
– Skin temperature probe
– Power supply cable
– Re-chargeable lithium battery
– Dust-protective cover
– Disposable electrode
– Manual: GB, FR, IT, ES.
– IBP single use monitoring kit
– PC software: GB, IT, ES.
– EtCO2 configuration
