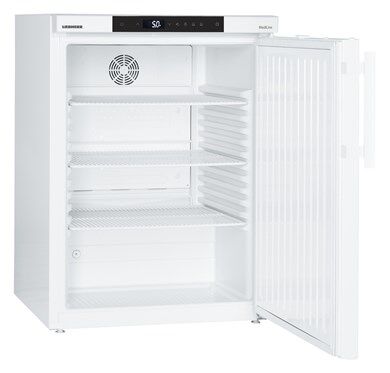

LKUv 1610 Pharmacy / Medical / Lab Refrigerator with Comfort Controller 141L Solid Door (White)

Retrofitting Smart Monitoring

Liebherr Smart Monitoring offers a comprehensive solution for documenting and monitoring measurement and operating data, alarm messages and appliance statuses. To connect the Smart Cooling Hub required for this purpose to this appliance, you will need the RS 485 interface converter, which is available separately.

Environmentally friendly refrigerants

Liebherr appliances are optimised for maximum energy efficiency and low operating costs. We only use the natural and environmentally-friendly refrigerants R 600a and R 290. When used with highly efficient compressors, these are extraordinarily efficient and, with their low global warming potential, also future-proof.

Efficient refrigeration system

Liebherr guarantees the outstanding quality of its refrigeration systems through expertise derived from decades of experience in the refrigeration technology sector, and through continuous research and development. By employing only premium-quality compressors, condensers, evaporators and other refrigeration components the energy consumption and operating costs of Liebherr appliances are significantly reduced.

Alarm test function

This test function can be used to check whether an internally or externally connected alarm system is functioning correctly. The appliance’s refrigeration performance is not affected by this test.

Pull out @ 90 degree door opening

The bigger vegetable basket with a pullout feature enhances the organization of the refrigerator. With more space available and a pullout mechanism, users can arrange their fruits and vegetables more efficiently, making it easier to find and access items.

Digital temperature display

The digital temperature display indicates the refrigerator’s interior temperature to the exact degree. This can be easily read from the outside to give users immediate information and without the need to open the appliance.

Other Features include:

• Highly efficient fans cool freshly stored produce quickly and maintain an even refrigeration temperature throughout the interior.
• Appliances can be connected to an external monitoring system using the serial bus interface. If there is no monitoring system for connection via the interface, an interface converter retrofit kit is available as an optional accessory. This enables a connection to be made to a PC or a laptop. The bus interface allows up to 20 appliances to be connected in series and networked together. Temperature and alarm can therefore be documented and archived, e.g. via Smart Monitoring.
• The integrated temperature alarm indicates if the lower or upper alarm thresholds have been breached. It uses both acoustic and visual signals to provide maximum security for goods that have been stored.
• All laboratory refrigerators and freezers are tested at the state-of-the-art Liebherr development facilities according to procedure EN 60068-3 for measuring temperature stability. This involves measuring the temperature at nine different points in the appliance interiors.
• Liebherr appliances are factory-fitted with door hinges on the right. The ability to change the hinge side allows the appliance to be tailored to individual requirements and optimally positioned.

Specifications:

Related Documents:

IQ – Installation Qualification

Operating Instructions

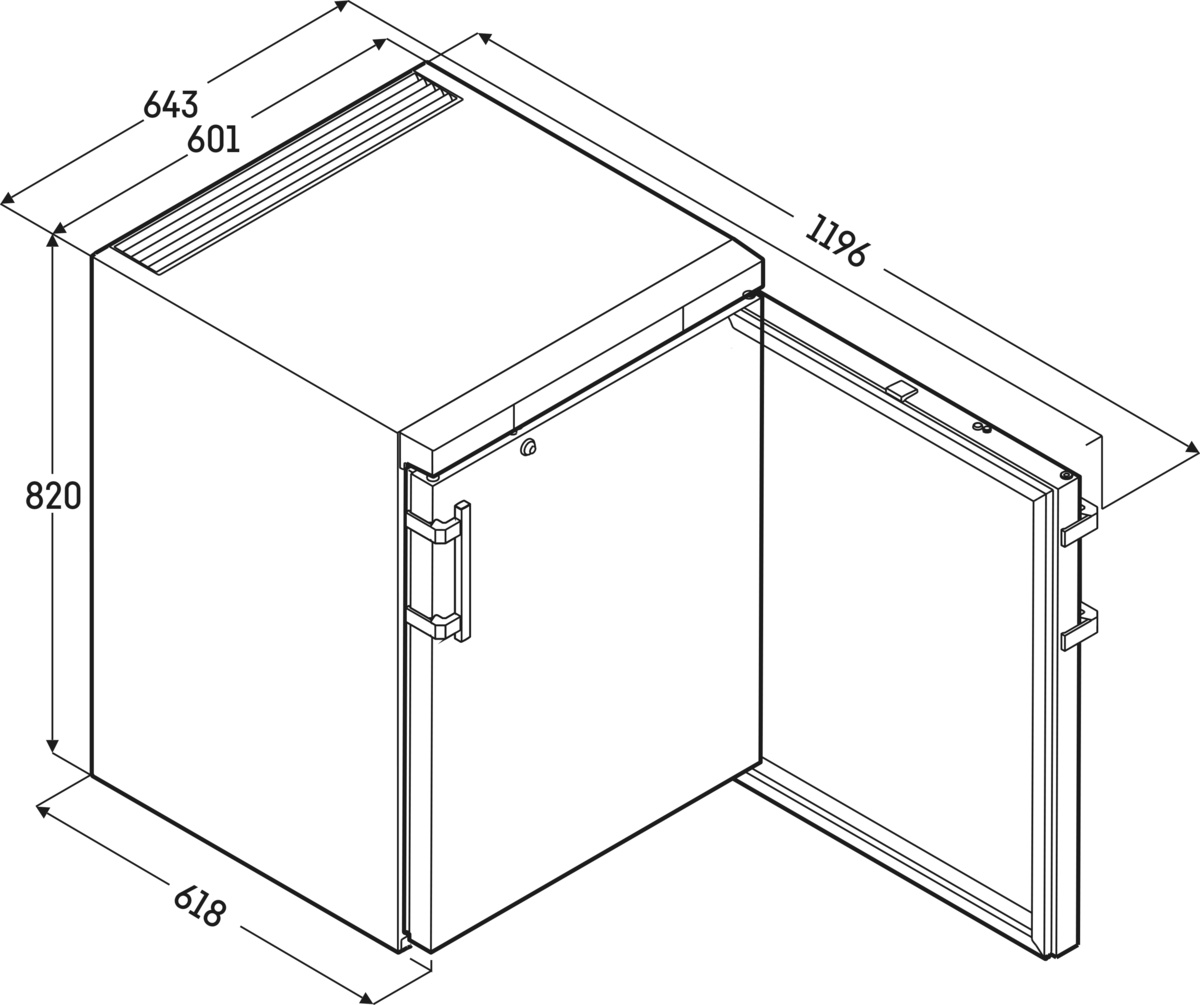

Measurements:
