Complete Haemoglobin Test Kit
For Professional use only. Contact us for guidance and instruction for use.

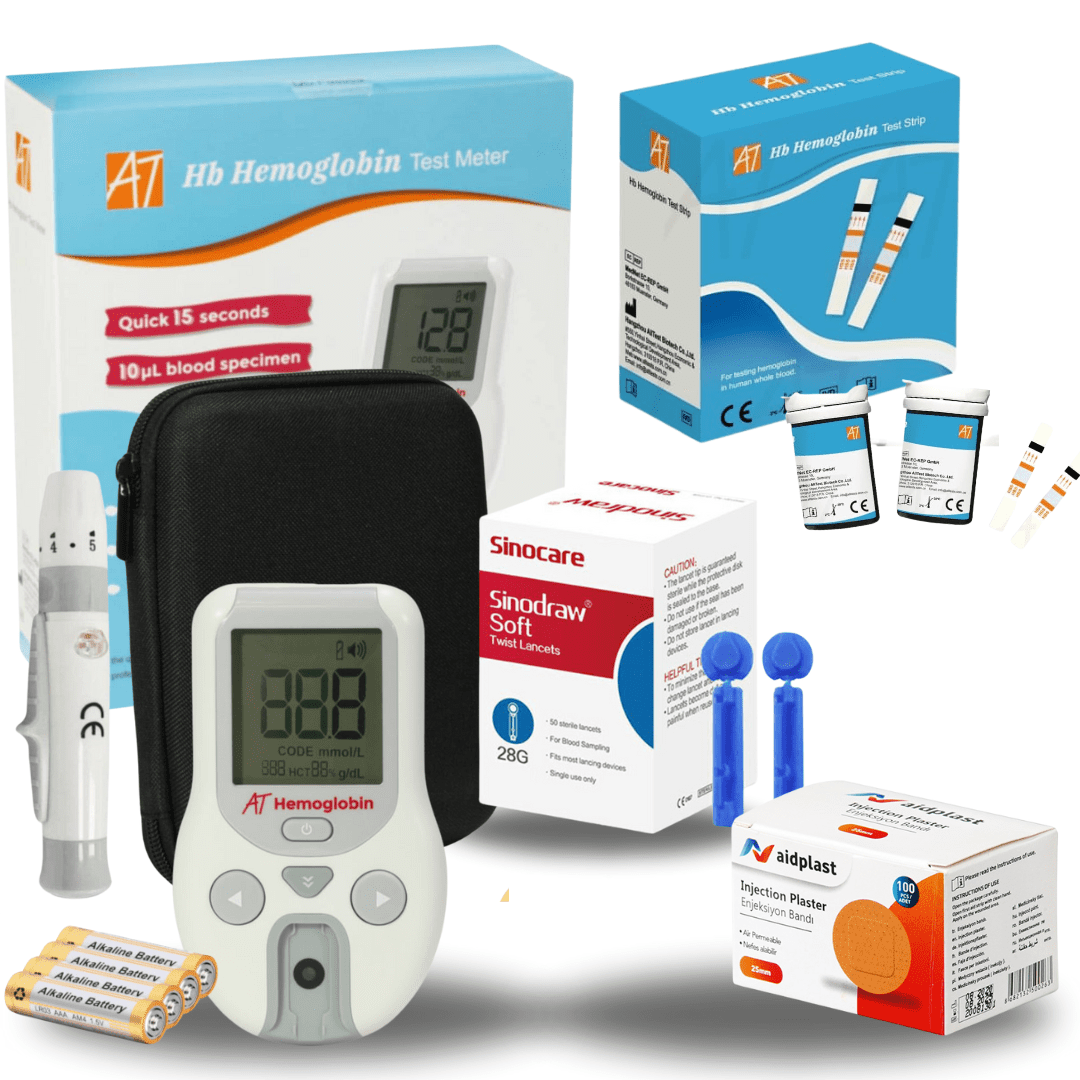

Our Complete Haemoglobin Test Kit offers incredible value with everything you need for accurate and easy haemoglobin testing:
- (AHR-100) AHR 100 Haemoglobin Test Meter (1),
- (OBHS-411) Haemoglobin Test Strips (50),
- (SINLAN) Sinocare Lancets (50):
- (V8025) Injection Spot Plasters (100).
Priced at just €56.90 ex VAT, this bundle is a fantastic deal, providing top-quality products at a budget-friendly price.
€56.90 ex VAT
Shipping 1-2 Business Days
Trading for over 25 Years
Important instructions for use:
- Wash your hands in Hot Water for 2 mins prior to the blood sample being taken. This is critical as it serves the dual purpose of Good hygiene Practice. Most importantly, it improves the Venous Blood Flow and quality of the blood, thereby improving the test results.
- When purchasing new test strips, always change the USB Dongle on the meter, with the new pack provided as Error codes are likely to happen.
Ensure precise and efficient haemoglobin testing with our comprehensive Haemoglobin Test Bundle. This bundle includes everything you need for accurate and convenient testing:
- AHR 100 Haemoglobin Test Meter(AHR-100): Reliable and easy-to-use, this meter provides quick and accurate haemoglobin measurements.
- 50 x Haemoglobin Test Strips (OHBS-411) : High-quality test strips compatible with the Haemoglobin Test Meter, ensuring precise results every time.
- 50 x Sinocare Lancets (SINLAN): Soft and gentle lancets designed for comfortable and virtually painless blood sampling.
- Injection Spot Plasters – 100 (V8025): Secure and sterile plasters to cover the injection site, ensuring cleanliness and protection post-sampling.
Why Choose Our Bundle?
- Convenience: All essential components in one package.
- Cost-Effective: Save money compared to purchasing items separately.
- Quality Assurance: Trusted brands and reliable products for your health needs.
- Ease of Use: User-friendly design suitable for both professional and personal use.
Order Now and take the first step towards efficient and reliable haemoglobin testing!
Take a look at the individual product descriptions below to learn more about each item included in the bundle.

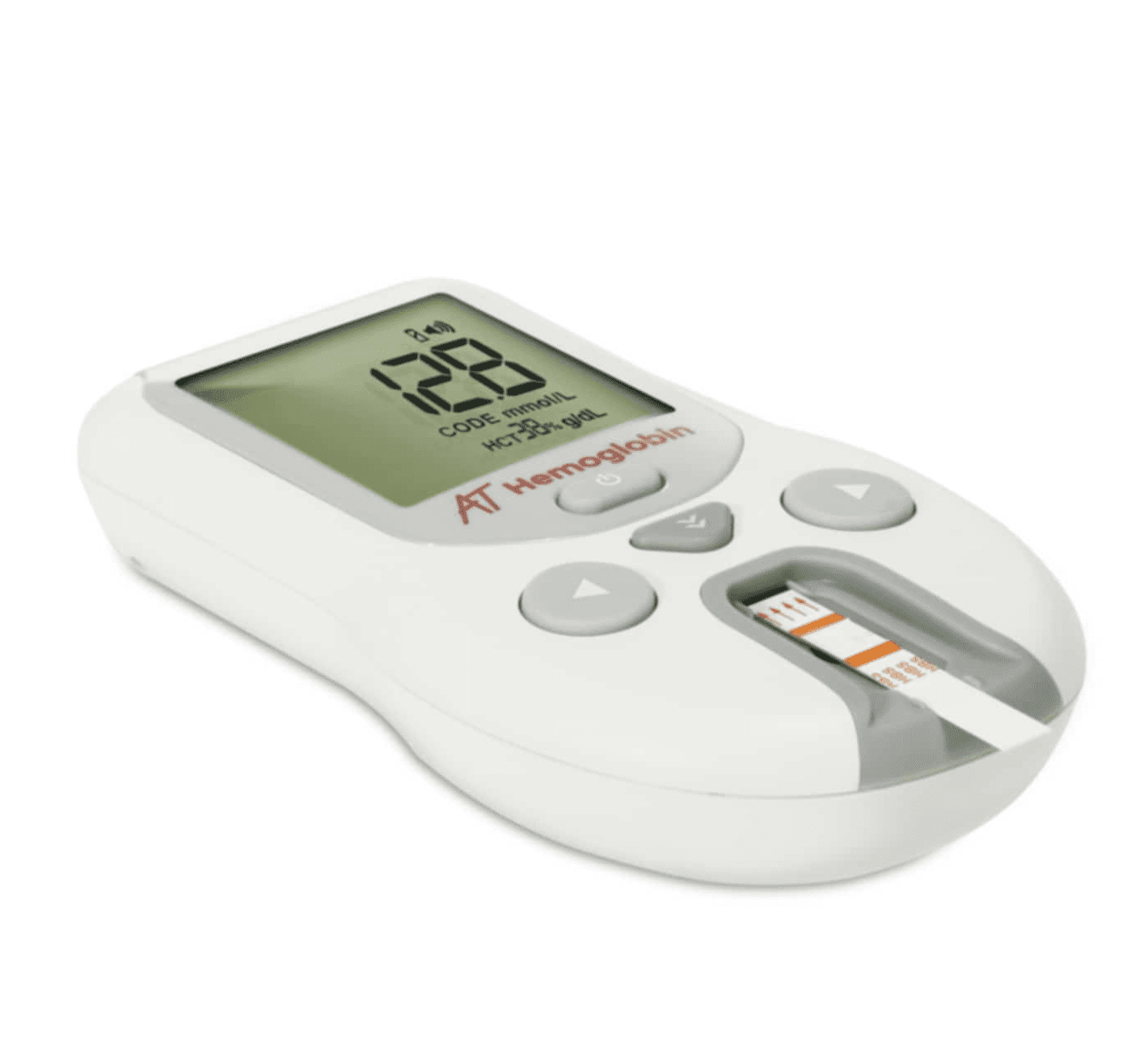

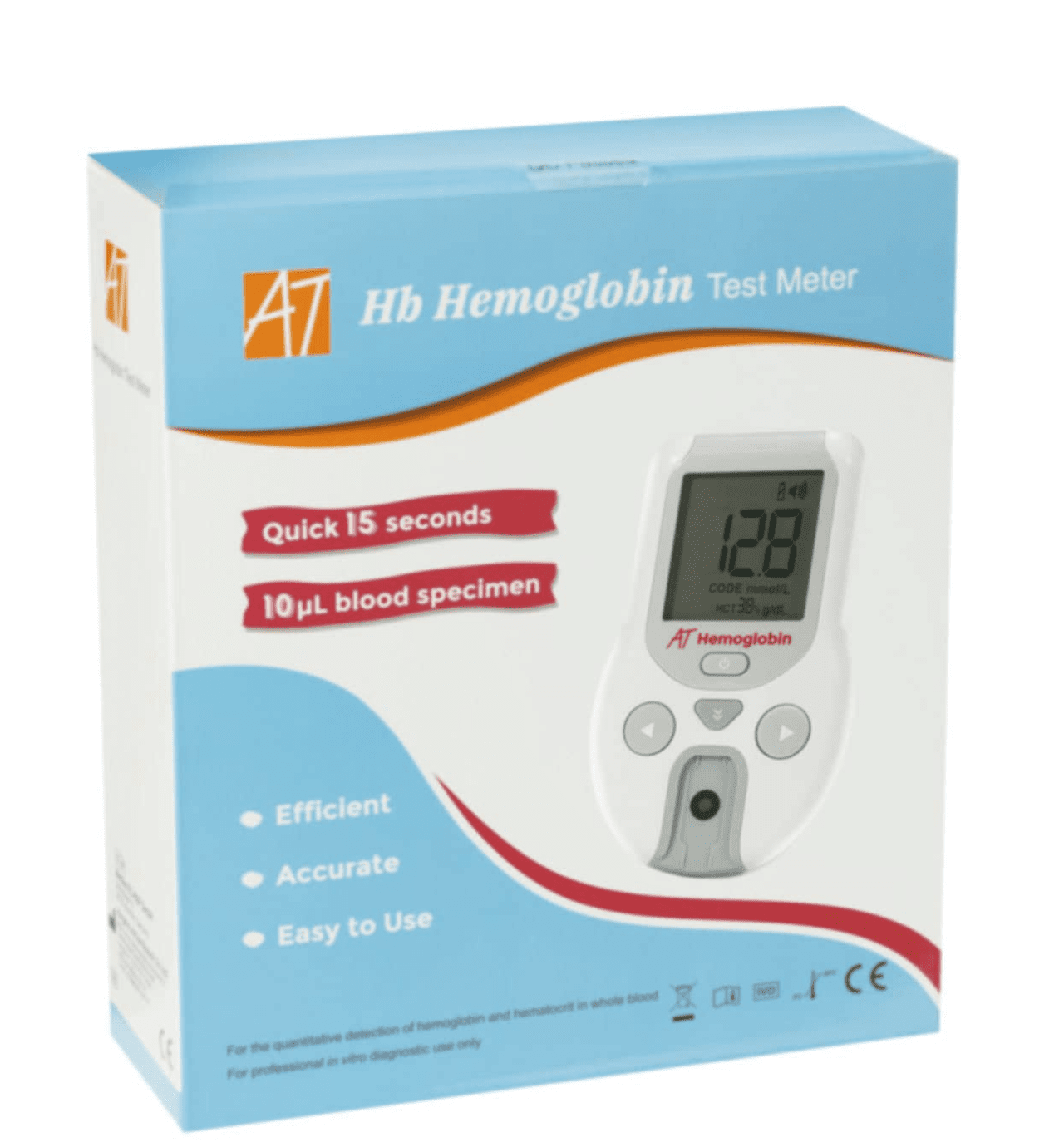

- AHR 100 Haemoglobin Test Meter
Monitor haemoglobin levels effortlessly with this Haemoglobin Test Meter. Designed for accuracy, the device helps track normal haemoglobin levels, ensuring the haemoglobin count stays normal.
Product Details:
- AHR 100 Hb Test Meter
- PoC test device from Hangzhou AllTest Biotech
- For the quantitative detection of haemoglobin and Hct
- Reflectance photometer for in vitro diagnostics
- For use by healthcare professionals only
- Test procedure with capillary blood (not coagulated) and venous whole blood (coagulated with EDTA or heparin)
- Sample quantity: 10 μl
- Test duration: < 15 seconds
- Units of measurement: g/dl, g/l, mmol/l
- Measuring range: 4.5 b- 25.6 g/dl | 45 – 256 g/l | 0.03 – 0.16 mmol/l
- Memory: 1000 records
- Battery operation (3 AAA batteries)
- Battery life: approx. 360 hours or 2700 tests
- Automatic switch-off after 6 minutes
- Display size: 47 x 41 mm (L x W)
- Dimensions: 120 x 71 x 26 mm (L x W x H)
- Weight (without batteries): approx. 83 g
- 1 test meter
- Strips are sold separately and batch specific to each USB chip.
| Methodology: | Reflectance Photometer |
| Test Time: | <15 seconds |
| Measurement Range: | 4.5~25.6g/dL,45~256 g/L, 0.03-0.16 mmol/L |
| Specimen: | Whole Blood |
| Specimen Volume: | 10 pL |
| Power Source: | 3 AAA batteries |
| Battery Life: | 360 hours or 2700 tests |
| Units of Measure: | g/dU g/L, mmol/L |
| Memory: | 1000 records |
| Automatic Shut Off: | 6 minutes after last action |
| Meter Dimension: | 120mm*71mm*26mm |
| Display Size: | 47*41mm |
| Weight (without Batteries): | 83g (Approx.) |
| Storage and Transport Condition: | -10-50 °CZ RH<90%, 86-106kPa |
| Working Condition: | 10-40 °C z RH<80%z 86-106kPa |
| Meter Connectors: | USB cable for Data Transfer or Power (Optional) |
Product Specifications:
- Format: Meter
- Specimen: Whole Blood
- Certificate: CE/CE0123/CE0197
- Reading Time: <15 seconds
- Pack: 2T/50T/1Set/100pcs/box
- Storage Temperature: -10 – 50℃
- Shelf Life: 5 Years
Related Documents:
9 Clinical Study Report for Hb Hemoglobin Test System (Whole Blood)

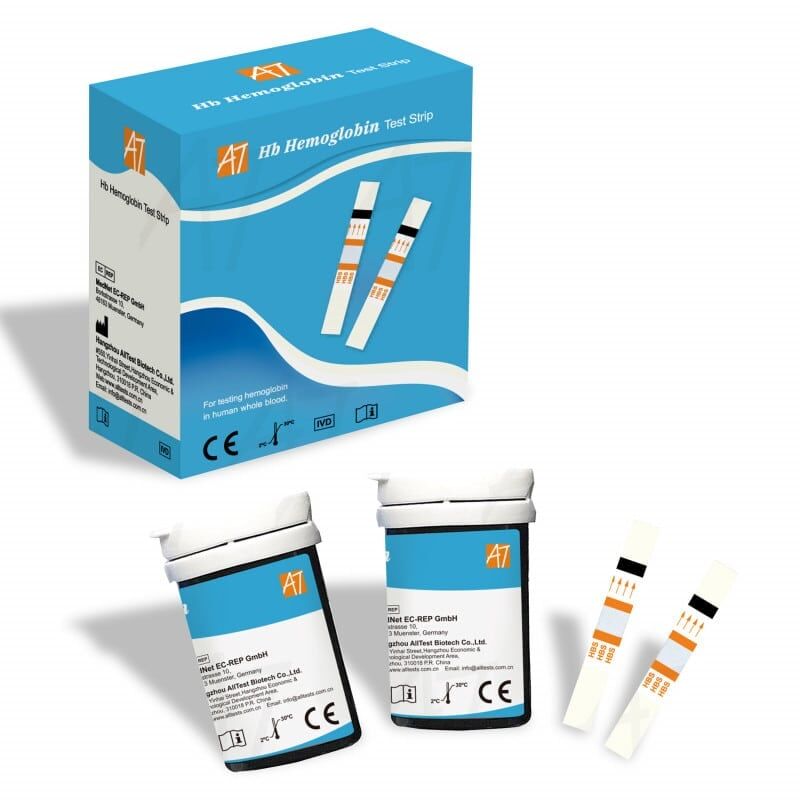

2. Haemoglobin Test Strips (50)
- Small sample volume
- Simple and reliable application
- For use with the HB test device AHR 100
- For the determination of Hb and HCT values
Product Details:
- Haemoglobin test strips
- For use with the AHR 100 Hb test meter from Hangzhou AllTest Biotech
- For quantitative determination of the haemoglobin and haematocrit (Hct) values
- Small sample quantity
- Reliable results
- Quick and simple test procedure
- Sample material: venous or capillary whole blood
- Test performed with just 10 μl of blood
- Result after just 15 seconds
- Measuring range: 4.5 – 25.6 g/dl
- Storage temperature: 2 – 30 °C

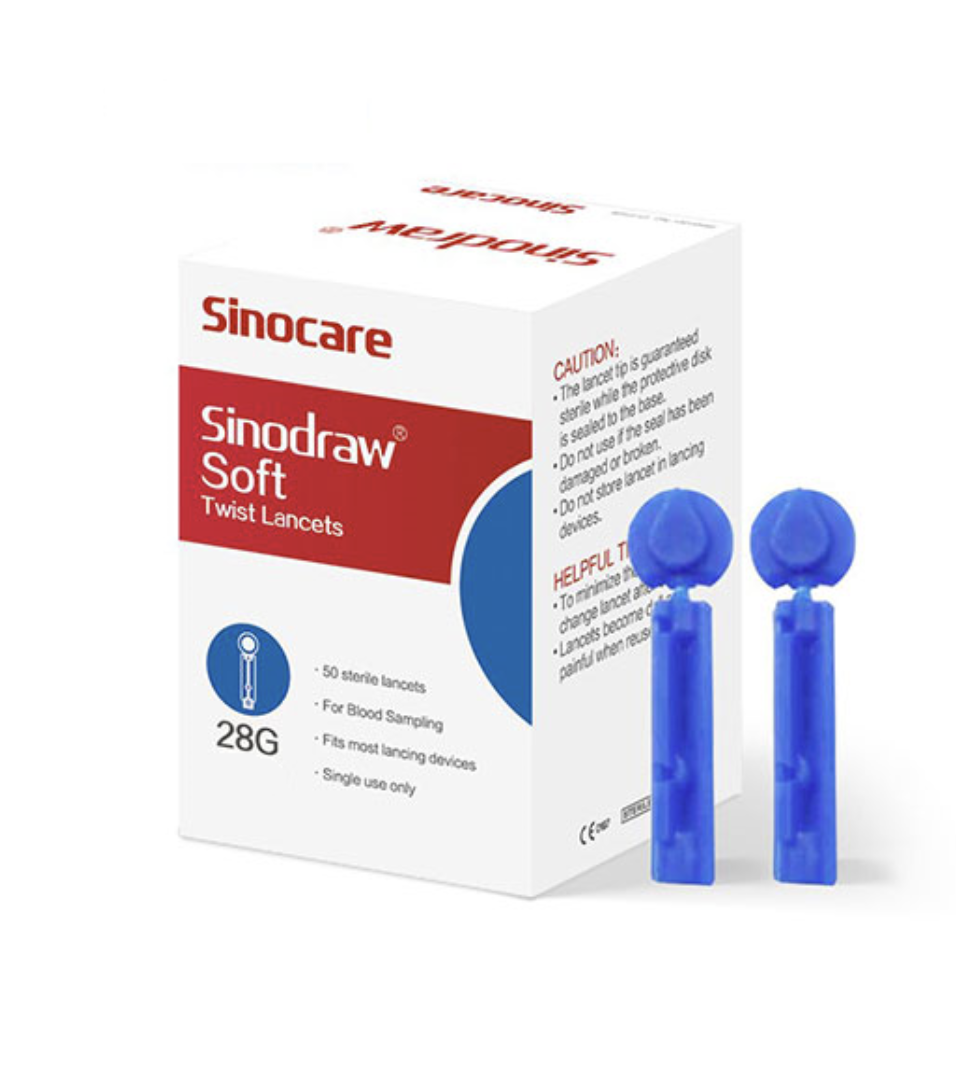

3.50 x Sinocare Lancets
50 x easy to use, fast and convenient lancets
Package includes: 50 x Lancets

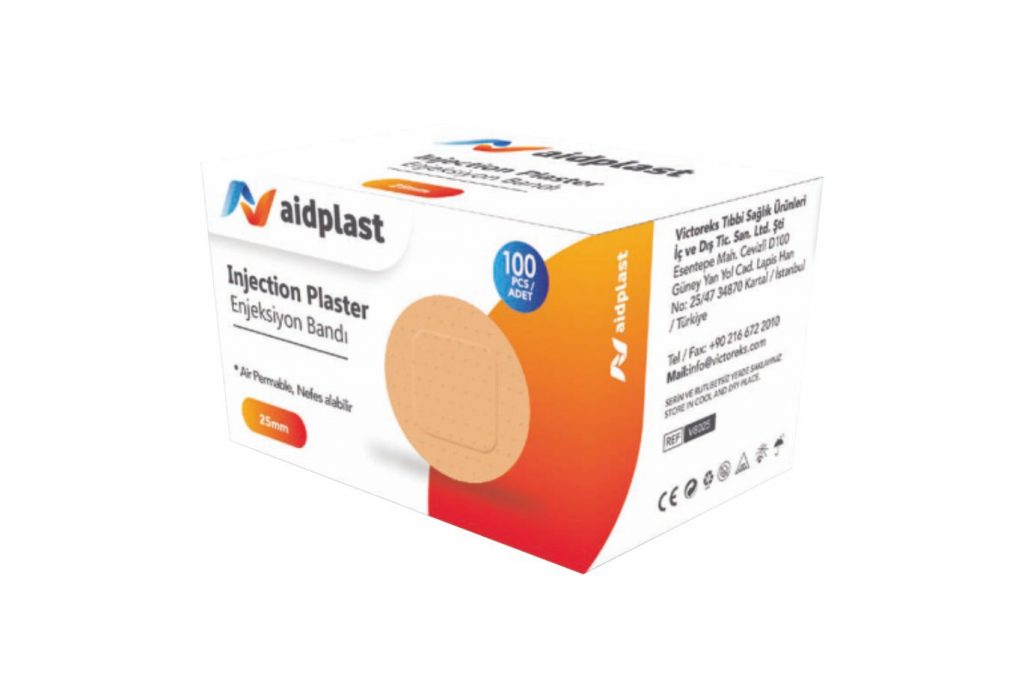

4. Injection Spot Plasters – 100:
Specifications / Key Features:
- Hypoallergenic
- Water resistant
- Absorbent pad that does not adhere at the wound
- Breathable
- The adhesive does not leave waste
- Individually packed
- X-Ray permeable
- Single us
